홈
압력계
오일 충만식 압력계
P253

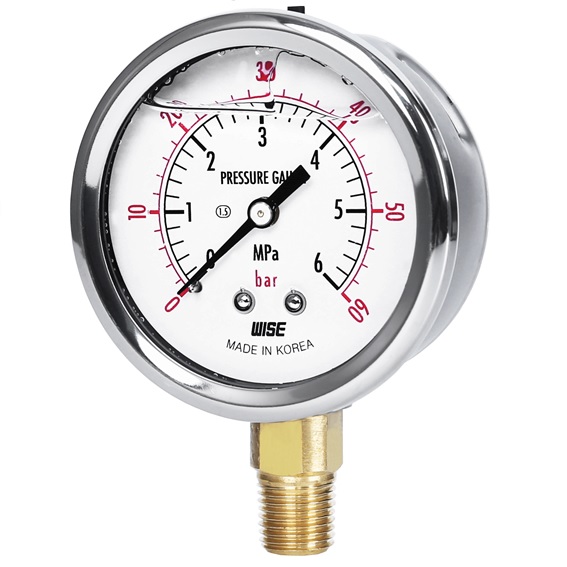

P253제품:P253 압력계

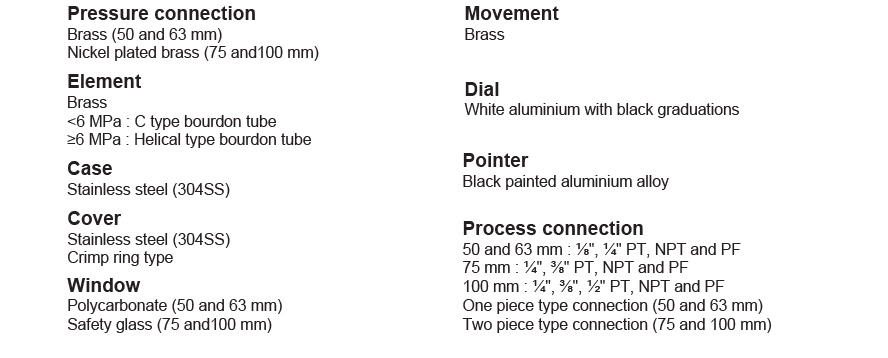

P253 압력계 제품 개요 P253 압력계 시리즈는 부식 환경에 적합합니다. 일반적인 응용 분야 : 화학, 석유 화학, 정제 공정, 발전,해양 및 식품 산업.스테인레스 스틸 케이스 및 커버는 외관이 좋으며 부식 및 화학적 공격에 대한 탁월한 증거가 있습니다. 제작 사양 Nominal diameter 63, 100 and 160 mm Accuracy P2532 (63 mm) : ±1.6% of full scale P2534 (100 mm) and P2536 (160 mm) : ±1.0% of full scale Scale range (MPa, kPa, bar) 63 mm : -0.1 ~ 0 to 0 ~ 35 MPa 100 and 160 mm : -0.1 ~ 0 to 0 ~ 100 MPa Working pressure Steady : 75% of full scale (63 and 80 mm) 100% of full scale (100 and 160 mm) Over range protection : 130% of full scale Working temperature Ambient : -20 ~ 60℃ Fluid : Max. 60℃ Degree of protection EN60529/IEC529/IP65 제품 사양
![]()

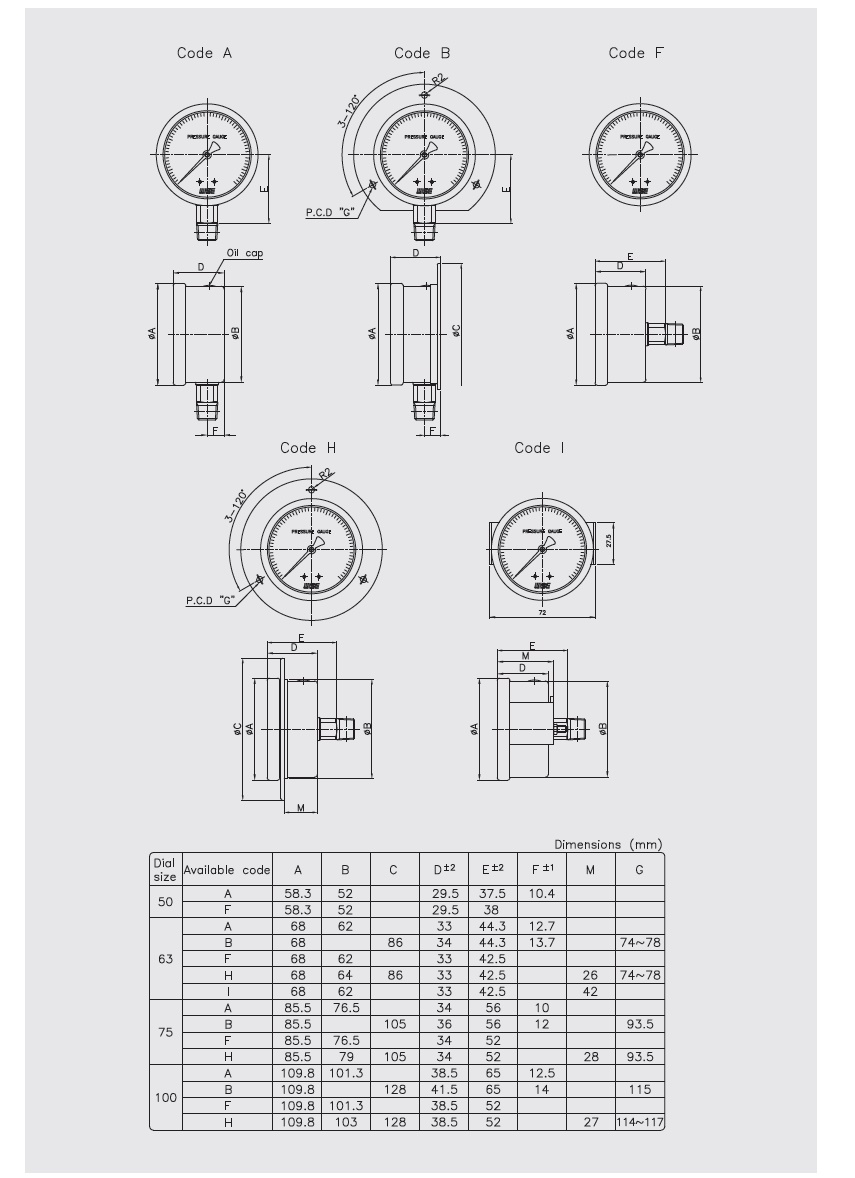

제품 도면
![]()
|
