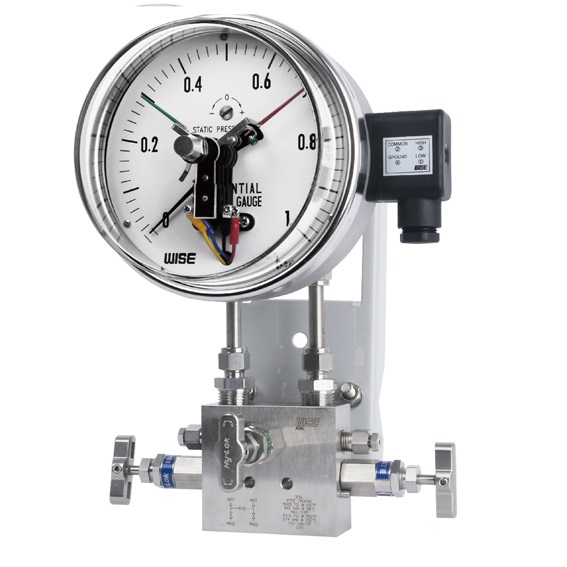

제품 소개 P601 접점 차압계
제품 개요 Nominal diameter 100 and 160 mm Accuracy ±1.0% of full scale ±1.5% or ±1.6% of full scale Scale range (MPa, kPa, bar) 0~30 kPa to 0~50 kPa 0~0.1 MPa to 0~1.5 MPa Max. Working pressure (Static pressure) 5 MPa Working temperature Ambient : -20~65°C Fluid : Max. 100°C Degree of protection EN60529/IEC529/IP65 Temperature effect Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.5% per 10℃ of full scale 제품 사양

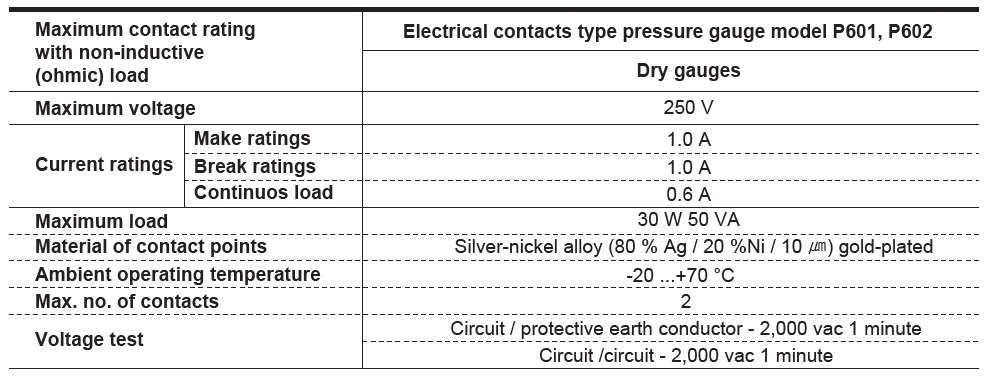

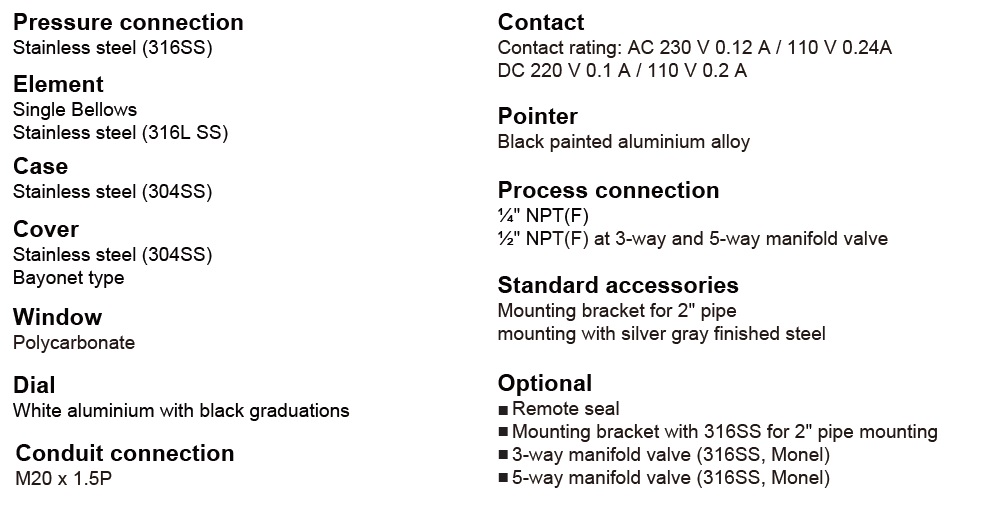

Specifications
|
